0.1um Silicon Powder Miller Lab Scale Ball Mill 4L Volume High Purity Grinding

Large Image : 0.1um Silicon Powder Miller Lab Scale Ball Mill 4L Volume High Purity Grinding

Product Details:

Place of Origin:	China
Brand Name:	MITR
Certification:	ISO9001:2008/CE
Model Number:	YXQM-4L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Export Standard Wooden Package
Delivery Time:	7-15 working days
Payment Terms:	TT,Western union
Supply Ability:	10set per week

Contact Now

0.1um Silicon Powder Miller Lab Scale Ball Mill 4L Volume High Purity Grinding

Description

Type:	Verticle	Revolution:	400rpm
Rotation:	800rpm	Current:	220V 50HZ
Jar Capacity:	2/4pcs	Sound:	Low Noise
Highlight:	laboratory ball mill machine , nano ball mill

0.1um Silicon Powder Miller Lab Ball Mill 4L Volume High Purity Grinding

1. Main application

Pearls/ginseng/hard coke/coal/glass/fiber/paper/chip/polymer/pigment/metallic oxide/iron mineral/iron

powder/alumina powder/magnesium powder/ceramic/alumina/bone/kaolin/limestone/plaster/quartz/

mineral/carbon fiber/black lead/printing ink/clay mineral/fiber product/sewage sludge/catalyst/chemicals

/alloy/solid/waste/wood/plant material/cement clinker/concrete/slag/tobacco etc.

2. Working principle

4 jars installed on the main plate which runs clockwise simultaneously when the plate starts turning. Balls impact

material at high speed which grinds and mixes particles. Dry and wet grinding and mixing various material with

different granularities. Min. particle 0.1μm. 2 or 4 jars working at the same time. Max. capacity at 2/3 jar. Feeding

granularity: solid ≤10mm, others ≤3mm. Discharging Min. particle 0.1μm.

3 Parameter

Brand	MITR
Product	Planetary Ball Mill
Model	YXQM-4L(Low noise)
Application	Medicine, food, geology, metallurgy, agriculture, glass, ceramic, aviation, chemical industry, biology, material, lithium battery, electronics, biology and many more.
Feed material	Medium hard, hard, brittle, fibrous
Size reduction principle	Impacting, cutting, friction
Function	Pulverizing, grinding, mixing, homogenizing, metallurgy
Main plate	Main plate soaking in lube to low noise
Max. feeding size	< 5mm Soil <10mm
Discharging granular	< 100nm
Min. grinding volume	1000ml/grinding jar
Max. grinding volume	4 X 1000ml
Grinding jar volume range	50ml / 100ml/250ml /500ml/1000ml(Nylon base used for small jars)
Gas protection jar volume range	100ml/250ml/500ml/(Nylon base used for small jars)
Max. load of single jar	330ml
Max. ball load of single jar	330ml
Revolution	10-400r/min
Rotation	20-800r/min
General speed	1200/min
Grinding media	Match 1: for pulverizing Match 2: for grinding Match 3: for nano dispersing Different matches according to separated materials. MITR can provide you right option.
Speed ratio	1:2
Grinding jar material	Stainless steel, agate, zirconium, alumina, tungsten carbon, nylon, PU, PTFE, silicon carbon, etc.
Grinding media	Stainless steel, agate, zirconium, alumina, nylon, PTFE for option.
Grinding media diameter	1/2/3/5/8/10/15/20/25/30mm
Grinding media quality	According to grinding media material
Grinding material types simultaneously	4
Grinding jar quantity	2/4
Grinding jar placement	Vertical
Overall dimension LWH	785868cm
Protection degree	IP60
Net weight	125kg
Grinding style	Dry/wet grinding
Lubricant tank position	At the bottom of main plate
Lubricant tank size	36*10CM
Lube volume	220ml(Purged before using)
Multi-fluxes	4-8 fluxes. MITR can provide if needed.
Flux volume	50ml-100ml
Main plate diameter	360mm
Cooling	Additional cooling machine
Inert gas protection	Optional inert gas grinding jars
Electricity supply	100-120V/200-240V AC ,50-60Hz,750W
Power port	China/Europe/USA/UK
Standard	CE
Patent 1: Arc sleeve ball mill jar device	U-shape integrated sleeve with level 5 safety protection. Patent No.: ZL 2015 2 0836150.6
Patent 2: Low noise planetary ball mill	Planetary gear soak sealing Patent No.: ZL 2014 2 0375569.1
Patent 3: Conversion planetary ball mill	Frequency conversion. Patent No.: ZL 2016 2 0288855.3
Certificate	Manual, warranty, certificate
Drive standard	Europe
Memory	Programmable and power-off memory
Forward/reverse running	Yes
Continuous running time set	00:01:00-99:59:59
Pulse time set	00:01:00-99:59:59
Emergency stop	Yes
Noise	< 60dB Within 3m

0.1um Silicon Powder Miller Lab Scale Ball Mill 4L Volume High Purity Grinding 0

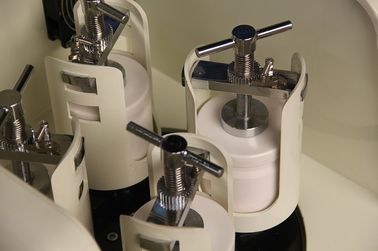

Grinding jars:

0.1um Silicon Powder Miller Lab Scale Ball Mill 4L Volume High Purity Grinding 1

0.1um Silicon Powder Miller Lab Scale Ball Mill 4L Volume High Purity Grinding 2
