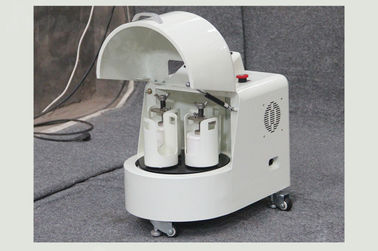

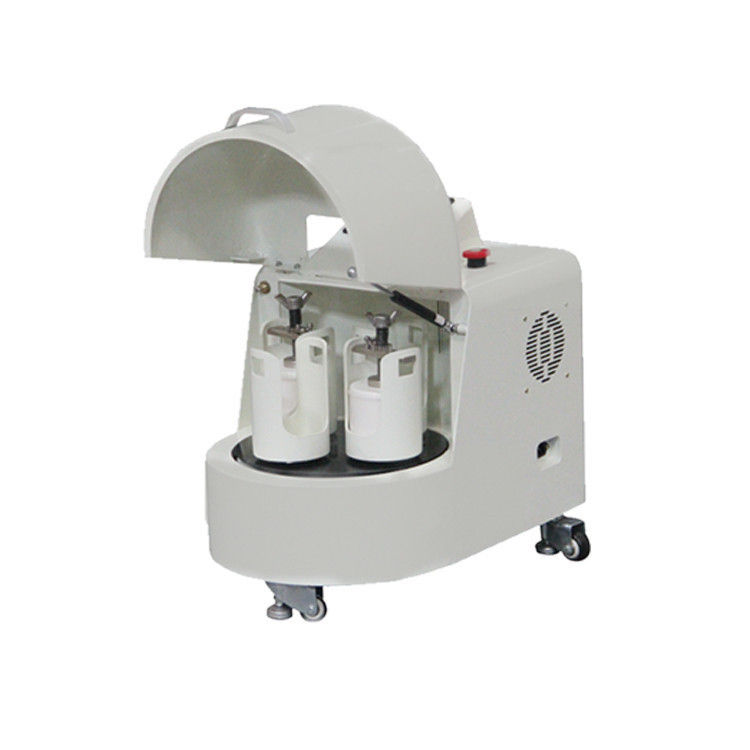

0.4L Vertical Small Lab Ball Mill Nano Super Fine Powder Grinding Mill
Product Description:
Planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanomaterail,R&D of new product and small batch production for high tech materials. The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,entire laboratory.The samples could be ground under vacuum state with using the vacuum ball mill jars.
Application:
Our Planetary Ball Mills are widely used in small batch high efficiency mixing. They are used in research institutions, universities and even industrial production for mixing, homogenization and dispersion up to 0.1µm. Our customers are in the mining, agriculture, metallurgy, electrical, electronics, materials, chemical, pharmaceutical, cosmetics and nuclear industries.
Feature:
Technology of oil seal mute and noise-reducing <50db
Efficient grinding for superior results up to 0.1µm
Adjustable speed ratios
Grinding jar volumes from 50ml to 5L in 8 different materials
Reliable for continuous use
No strict weight balancing required

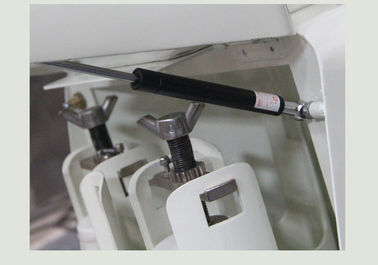

Safety gear lock

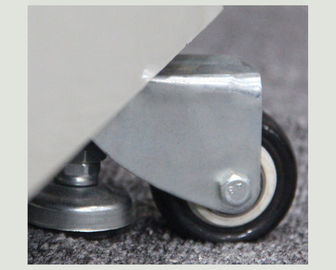

There are universal wheels to push and run when carrying;There are universal supporting feet for stable when running.
There are three series of planetary ball mill: Vertical ball mill; Horizontal ball mill;Full direction ball mill
Technical parameter
| Model |
Spec |
With ball mill jar |
Remarks |
| |
|
Spec(ml) |
Quantities |
|
| YXQM-0.4L |
0.4L |
50-100ml |
2 or 4 |
With 50ml vacuum ball mill jar |
| YXQM-1L |
1L |
50-250ml |
2 or 4 |
With 50-100ml vacuum ball mill jar |
| YXQM-2L |
2L |
50-500ml |
2 or 4 |
With 50-250ml vacuum ball mill jar |
| YXQM-4L |
4L |
50-1000ml |
2 or 4 |
With100-500ml vacuum ball mill jar |
| YXQM-8L |
8L |
500-2000ml |
2 or 4 |
With250-1000ml vacuum ball mill jar |
| YXQM-10L |
10L |
500ml-2.5L |
2 or 4 |
With 250-2.5L vacuum ball mill jar |
| YXQM-12L |
12L |
1L-3L |
2 or 4 |
With 500-3L vacuum ball mill jar |
| YXQM-16 |
16L |
1L-4L |
2 or 4 |
With 500-4L vacuum ball mill jar |
| YXQM-20L |
20L |
1L-5L |
2 or 4 |
With 1000-5L vacuum ball mill jar |
| YXQM-40L |
40L |
4L-10L |
2 or 4 |
With 3L-10L vacuum ball mill jar |
| YXQM-60L |
60L |
6L-15L |
2 or 4 |
With 5L-15L vacuum ball mill jar |
| YXQM-80L |
80L |
6L-20L |
2 or 4 |
With 5L-20L vacuum ball mill jar |
| YXQM-100L |
100L |
10L-25L |
2 or 4 |
With 9L-25L vacuum ball mill jar |
| Model |
Voltage |
Motor power(KW) |
Inverter power KW |
Total timing
(min)
|
Alternating Run Time |
Rotation speed r/min |
Noise ≤db |
| Revolution speed |
Rotation speed |
| YXQM0.4L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM1L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM2L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM4L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM8L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM10L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM12L |
380V 50HZ |
1.5 |
2.2 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM16L |
380V 50HZ |
2.2 |
2.2 |
1-9999 |
1-9999 |
5-280 |
10-560 |
<58db |
| YXQM20L |
380V 50HZ |
3.0 |
3.7 |
1-9999 |
1-9999 |
5-230 |
10-460 |
<60db |
| YXQM40L |
380V 50HZ |
5.5 |
7.5 |
1-9999 |
1-9999 |
5-220 |
10-440 |
<63db |
| YXQM60L |
380V 50HZ |
7.5 |
7.5 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM80L |
380V 50HZ |
7.5 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM100L |
380V 50HZ |
11 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<68db |
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
Join an exhibition
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
