360 Degree Rotation Benchtop Micro Lab Ball Mill With Cool Air Conditioner

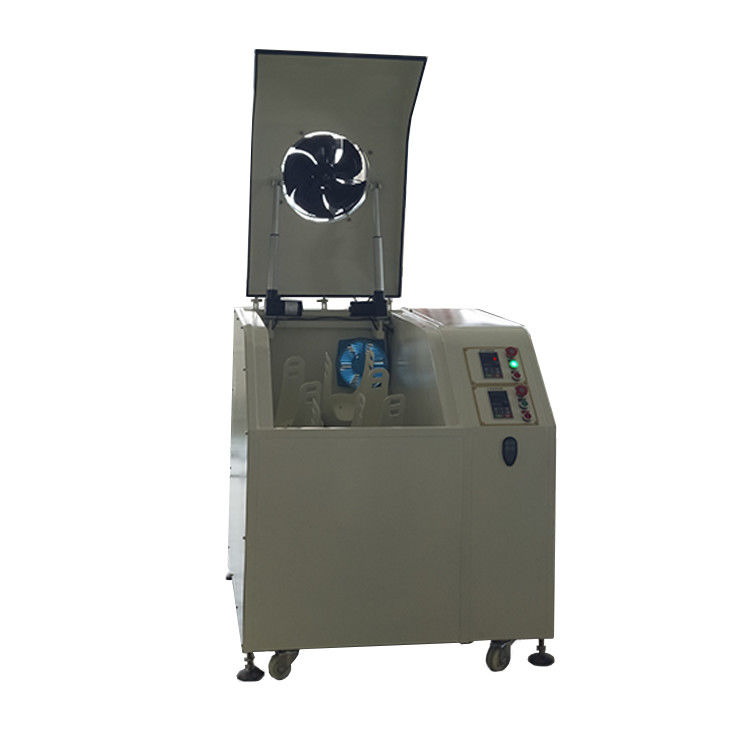

Large Image : 360 Degree Rotation Benchtop Micro Lab Ball Mill With Cool Air Conditioner

Product Details:

Place of Origin:	China
Brand Name:	MITR
Certification:	ISO9001:2008/CE
Model Number:	YXQM-2L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Export Standard Wooden Package
Delivery Time:	7-15 working days
Payment Terms:	TT,Western union
Supply Ability:	10set per week

Contact Now

360 Degree Rotation Benchtop Micro Lab Ball Mill With Cool Air Conditioner

Description

Product Name:	Omnidirectional Planetary Ball Mill	Application:	Pharmaceuticals,food,geology,metallurgy,agriculture,glass,ceramics,aviation Chemicals,biology,materials,lithium Power,electronics,plants, Biology And So On.
Power:	220V 50HZ	Jar Volume:	50ml-500ml
Revolution:	5-400r/min	Rotation:	10-800r/min
Feeding:	Soil Material≤10mm,others ≤3mm	Discharge:	Minimum Down To 0.1μm
Highlight:	laboratory ball mill machine , nano ball mill

Lab Ball Mill Of Whole 360 Degree Rotation With Cool Air Conditioner

Brand	MITR
Model	QX-QM2L
Single Jar Grinding and Total Volume	500mlL*4=2L(Vacuum jar selection 250ml)
General grinding jar material selection	Metal material selection:304 stainless steel,Tungsten carbide(YG8)
	Nonmetal material selection:ceramic / corundum / alumina, zirconia, agate
	high polymer material selection: Nylon, polyurethane, polytetrafluoroethylene(PTFE)
General grinding ball material selection	Stainless steel,ceramic,corundum,alumina,zirconia, agate, tungsten carbide
Capacity of material	1/3 of grinding jar
Initial size	Friable material less than 10mm,others less than 3mm
Final size	Minimum up to 0.1μm
Grinding Method	Dry grinding / wet grinding / high energy alloying grinding / vacuum grinding(need customized) / low temperature grinding(need customized)
Speed (variable frequency adjustable)	Revolution 0-400r/min,Rotation 0-800r/min Planetary total speed:0-3200r/min
360 degree speed(variable frequency adjustable)	1-14/min
speed ratio(revolution:rotation)	1:2
Adjusting speed control method	PLC Frequency conversion control system,Touch screen control system
Driving style	Gear drive
Grinding ball ratio(the detail ratio contact customer service)The right sheet is just for reference.In fact that we are matching according to the customer requirement.	General grinding over 800 mesh(5mm;10mm;15mm) feeding material less than 3mm
	Fine grinding 800-1500 mesh(3mm;5mm;10mm;)feeding material less than 1mm
	Super fine grinding over 1500 mesh(0.1~10μm)(1mm;3mm;5mm)feeding material less than 200 mesh
Voltage	220V
Power	0.75Kw
Working method	Two or four cans working at the same time
Maximum continue working time	72h(Timing 0-9999h)
Programmed control	The ball grinding used for high-tech micro computer chip control.It can run alternately for positive turn and reverse turn(0-999min), and run alternately for positive turn and pause,reverse and pause,and than positive run. It is especially suitable for cooling or intermittent operation.
Weight	170kg
Dimension	955565
Features (direct motor connection)	The only one which have the drive mode with speed reducer with motor direct drive in the market,have replaced of traditional belt drive mode.In the past, the ball mill was mainly driven by a belt, and all the gravity is on the belt. After running for a long time, the belt is easy to aging, skid, fracture and so on. There is the direct speed reducer with motor to installed into the planetary master disk in our company,its stability is more 5 times higher than that of belt.And also there is no belt replacement every 3 months during the later maintenance.It has applied for patent protection for planetary ball mill with motor direct drive.

360 Degree Rotation Benchtop Micro Lab Ball Mill With Cool Air Conditioner 0
