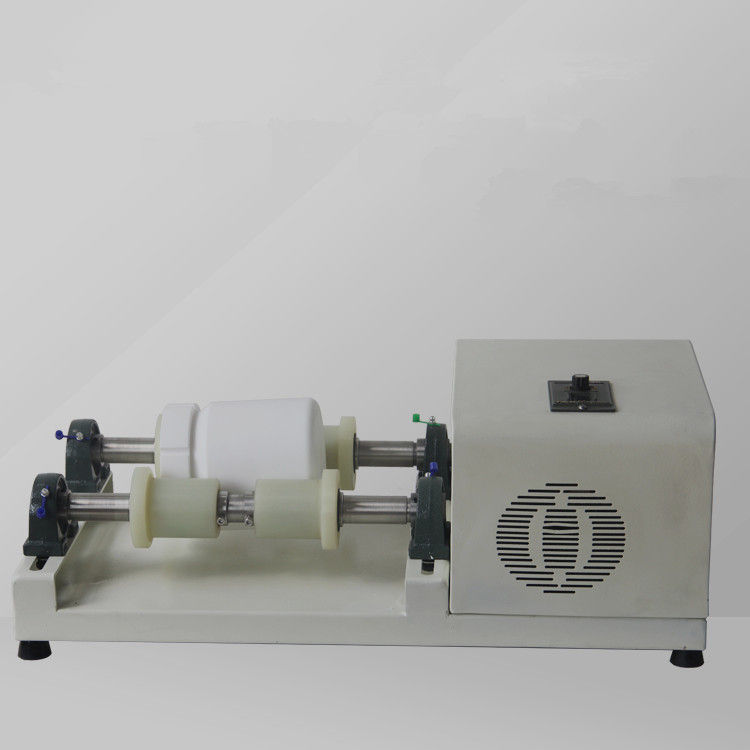

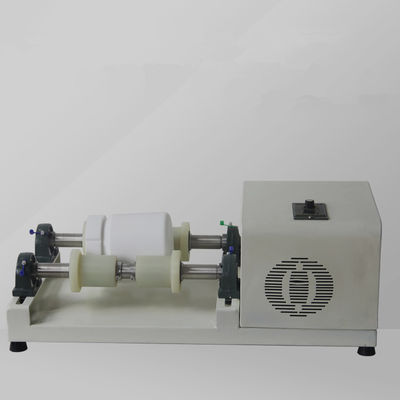

Roller Jar Ball Mill / 5l-1 Jar Rolling Mills Grinding Machine
Main application
Widely used in electron,ceramic,daubing,glass flour,luminophore material,nonmetallic ore,explosive,medicine etc.
Used in the processing of electronic material,magnetic material,equipment battery,biological cultivation,food packaging,battery material
Small horizontal jar mill mainly used in the laboratory and small batch production.Because of the flexible and convenient operation,also used for production of some small enterprises.
Main features
Frequency conversion control speed,program control.
Adjusting the roller wheelbase by the hand wheel to prevent the jar movement.
The outer lining of the roller shaft with wear-resistant polyurethane to increase friction coefficient and prevent sliding jar deformation.
Feeding granularity less than 3mm,soil <=10mm
Optional configure
Material of grinding jar:Nylon,corundum/alumina oxide,stainless steel,polyurethane etc such as special material could be customized
Material of grinding balls selection:stainless steel balls,alumina oxide balls/corundum balls,agate balls,zirconium oxide balls,hard alloy balls and so on.
Technical parameter:
| Model |
Jar valume*quantity(piece) |
Roller layers |
Roller piece |
Roller diameter*length*part |
Adjust distance with handwheel |
Jar diameter selection range to adjust(mm) |
Frequency conversion speed range min |
Voltage(V) |
Power(KW) |
External dimenstion W*L*H mm |
Driving mode
|
| GMS1-2 |
(0.5-1L)*2 |
1 |
2 |
φ40*180 |
52~160 |
φ50-φ160 |
0~300 |
220V |
0.75 |
580*420*410 |
Belt |
| GMS3-2 |
(0.5-3L)*2 |
1 |
2 |
φ50*220 |
52~210 |
φ50-φ200 |
0~300 |
220V |
0.75 |
660*440*410 |
Belt |
| JGMS3-2 |
(0.5-3L)*2 |
1 |
2 |
φ58*220 |
76~225 |
φ60-φ200 |
0~300 |
220V |
0.75 |
940*440*400 |
Belt |
| GMS5-2 |
(0.5-5L)*2 |
1 |
2 |
φ60*390 |
67~280 |
φ70-φ260 |
0~270 |
220V |
0.75 |
760*610*530 |
Belt |
| GMS10-2 |
(0.5-10L)*2 |
1 |
2 |
φ70*390 |
67~230 |
φ60-φ280 |
0~220 |
220V |
1.5 |
790*630*530 |
Synchronize belt |
| GMS20-2 |
(0.5-20L)*2 |
1 |
2 |
φ80*470 |
30~340 |
φ60-φ320 |
0~220 |
380V |
2.2 |
827*952*724 |
Synchronize belt |
| GMS30-2 |
(1-30L)*2 |
1 |
2 |
φ80*(425*2) |
35~290 |
φ60-φ360 |
0~200 |
380V |
2.2 |
1328*658*720 |
Synchronize belt |
| GMS1-4 |
(0.5-1L)*4 |
1 |
3 |
φ40*180 |
62~160 |
φ50-φ160 |
0~300 |
220V |
0.75 |
580*520*410 |
Belt |
| GMS3-4 |
(0.5-3L)*4 |
1 |
3 |
φ50*230 |
76~230 |
φ70-φ180 |
0~270 |
220V |
0.75 |
780*648*5305 |
Belt |
| GMS5-4 |
(0.5-5L)*4 |
1 |
3 |
φ60*390 |
67~280 |
φ70-φ260 |
0~270 |
220V |
1.5 |
850*748*530 |
Belt |
| GMS10-4 |
(0.5-10L)*4 |
1 |
3 |
φ70*(390*2) |
67~230 |
φ60-φ280 |
0~220 |
380V |
2.2 |
1189*890*680 |
Synchronize belt |
| GMS10-4B |
(0.5-10L)*4 |
2 |
2 |
φ70*(390*2) |
67~230 |
φ60-φ280 |
0~220 |
380V |
2.2 |
742*890*1111 |
Synchronize belt |
| GMS20-4 |
(0.5-20L)*4 |
2 |
3 |
φ80*(470*2) |
30~340 |
φ60-φ320 |
0~220 |
380V |
2.2 |
1309*1128*724 |
Chain wheel |
| GMS30-4 |
(1-30L)*4 |
1 |
3 |
φ80*(425*2) |
35~290 |
φ60-φ360 |
0~200 |
380V |
4 |
1328*1048*680 |
Synchronize belt |
| GMS3-8 |
(0.5-3L)*8 |
2 |
3 |
φ50*(230*2) |
76~230 |
φ70-φ200 |
0-280 |
380V |
1.1 |
780*717*965 |
belt |
| GMS5-8 |
(0.5-5L)*8 |
2 |
3 |
φ60*(310*2) |
67~280 |
φ70-φ260 |
0-270 |
380V |
2.2 |
1020*868*950 |
Chain wheel |
| GMS10-8 |
(0.5-10L)*8 |
2 |
4 |
φ70*(410*2) |
67~302 |
φ60-φ280 |
0~220 |
380V |
3 |
1210*890*1050 |
Chain wheel |
| GMS20-8 |
(0.5-20L)*8 |
2 |
4 |
φ80*(470*2) |
30~340 |
φ60-φ320 |
0~220 |
380V |
3 |
1390*1128*1100 |
Chain wheel |
Details:
