Agate Lined Stainless Steel Ball Mill Container Jar Vertical 50ml Volume

Large Image : Agate Lined Stainless Steel Ball Mill Container Jar Vertical 50ml Volume

Product Details:

Place of Origin:	Changsha, Hunan, China
Brand Name:	MITR
Certification:	CE; ISO
Model Number:	MT-GJ-A/L50

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Plywood package
Delivery Time:	15 working days after payment received
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 set per month

Contact Now

Agate Lined Stainless Steel Ball Mill Container Jar Vertical 50ml Volume

Description

Material:

Agate

Volume:

50ml

Type:

Vertical

Grinding Material:

Soil, Metal Oxide,

Highlight:

grinding mill jars

ball mill container

Agate Lined Stainless Steel Ball Mill Container Jar Vertical 50ml Volume

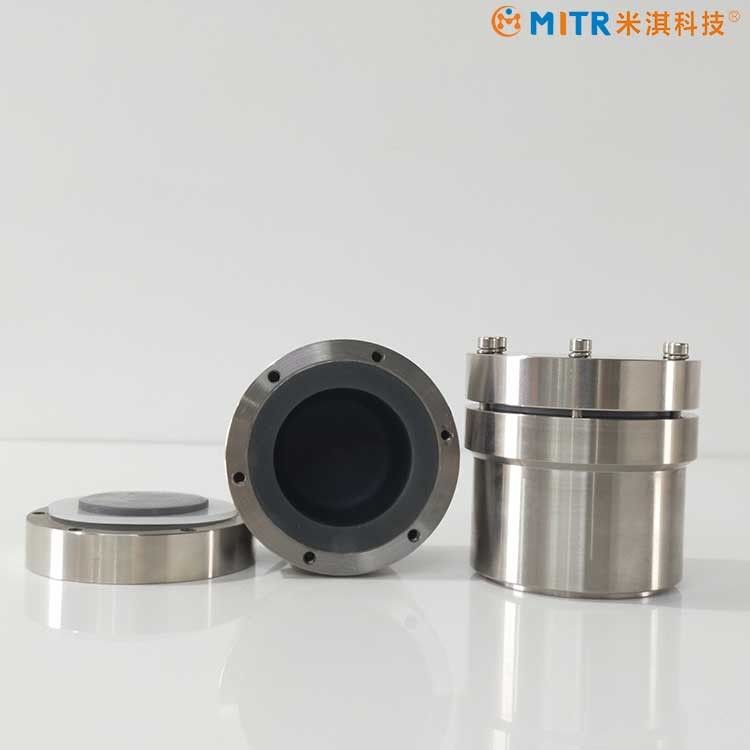

Ball Mill Jar 50ml Agate Lined Stainless Steel Jar

Raw material agate jar with high purity, equipped with stainless steel gasket. It is used for grinding before vacuum in glove box. The jar consists of jar, lid and O-ring sealing to ensure the vacuum or inert gas environment inside the jar.

Product specification

Meterial: Agate 99.9%

Agate jar size: 64*60*10mm

Agate jar thickness: 10mm

Jar volume: 50ml

Feeding material: soil, metal oxide, non-metal material.

Feeding volume: 15ml

Ball load: 15ml

Lid fixing: Bolt tightening

Material Data of Grinding Tools
Material	Main component	Density (g/cm³)	Abrasion resistance	Use for material to be ground
Agate	SiO₂	2.65	Good	Soft to medium-hard samples
Sintered corundum	Al₂O₃	3.8	Fairly good	Medium-hard, fibrous samples
Silicon nitride	Si₃N₄	3.25	Excellent	Abrasive samples, iron-free milling
Zirconium oxide	ZrO₂	5.7	Very good	Fibrous, abrasive samples
Stainless steel	Fe –Cr –Ni	7.8	Fairly good	Medium-hard, brittle samples
Tempered steel	Fe –Cr	7.65	Good	Hard, brittle samples
Tungsten carbide	WC	14.95	Very good	Hard, abrasive samples
Polypropylene disposable jar	MC/PA/PTFE/PU/HDPE/PP	**	Good	For homogenisation

Agate Lined Stainless Steel Ball Mill Container Jar Vertical 50ml Volume 0

Agate Lined Stainless Steel Ball Mill Container Jar Vertical 50ml Volume 1

Agate Lined Stainless Steel Ball Mill Container Jar Vertical 50ml Volume 2
