Rotary Planetary Ball Mill Low Noise All Direction 0.4l Planetary Ball Mill For Lab
Catalog:
| Model |
Voltage |
Motor power(KW) |
Inverter power KW |
Total timing(min) |
Alternating Run Time
of co-rotation
& Reversal Rotation
(min) |
Rotation speed r/min |
Noise ≤db |
| |
|
|
|
|
|
Revolution speed |
Rotation speed |
|
| QM-QX0.4L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| QM-QX1L |
220V 50HZ |
0.75 |
0.55 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| QM-QX2L |
220V 50HZ |
1.1 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| QM-QX4L |
220V 50HZ |
1.1 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| QM-QX8L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<50db |
| QM-QX10L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<50db |
| QM-QX12L |
380V 50HZ |
1.5 |
2.2 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<50db |
| QM-QX16L |
380V 50HZ |
2.2 |
2.2 |
1-9999 |
1-9999 |
5-280 |
10-560 |
<50db |
| QM-QX20L |
380V 50HZ |
3.0 |
4 |
1-9999 |
1-9999 |
5-230 |
10-460 |
<50db |
| QM-QX40L |
380V 50HZ |
3.0 |
4 |
1-9999 |
1-9999 |
5-220 |
10-440 |
<50db |
| QM-QX60L |
380V 50HZ |
4.0 |
5.5 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<50db |
| QM-QX80L |
380V 50HZ |
5.5 |
5.5 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<50db |
| QM-QX100L |
380V 50HZ |
7.5 |
7.5 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<50db |
Application:
It is widely used in geology,mineral,metallurgy,electronic,building material,ceramic,chemical,light industry,medicine,beauty,environment production,tea and so on. Our company have the laboratory with 1000 sets of application cases and maybe could provide you some suggestion.
Soil: crushing and grinding of soil sand with different physical properties
Fiber: fibrous, crushing and grinding with a certain tensile strength:
Tea, Hay and Other Herbs: Light,Fluffy Crushing and Grinding
High Purity Metal:Granular,Hard,Oxidized High Purity Powder In Vacuum Atmospheres
Quartzite: Crushing And Grinding Of Granular,Hard Materials

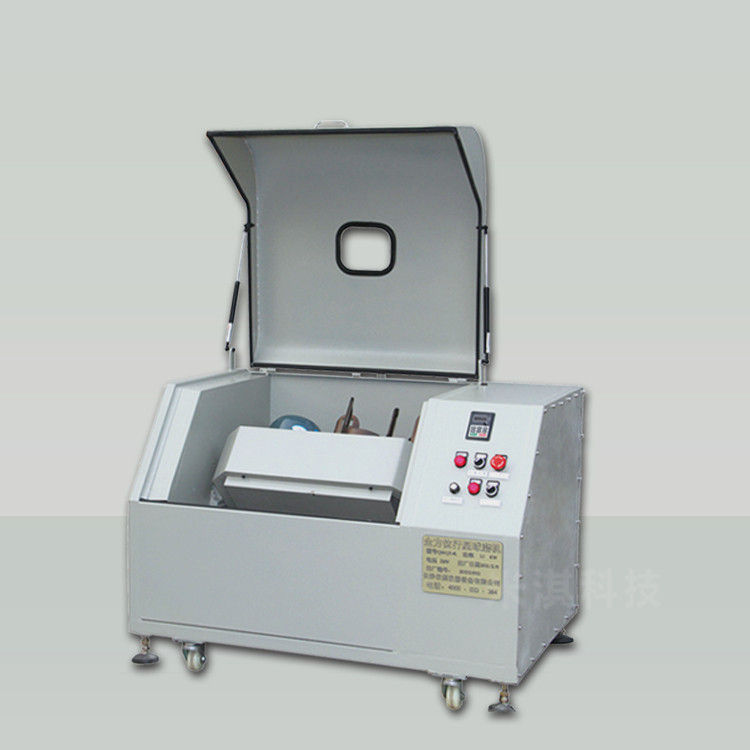

Feature of MITR 360 degree full direction planetary ball mill
1.Window: which could see clearly in the room
2..Pneumatic bar stay: Which bracing the cover on working and convenient and safety operation
3.Damping blanket: Which inlaid on the edge of the cover to prevent the noise and damage when open and close the cover.
4.Operation panel:It is convenient to operate and flexible operation
5.Grinding with four ball mill jars:We adopted the new style pressure bar,the revolution speed is stable and high efficiency and the granularity finer
6.Under high speed working,effectively enhance the air flowing speed of the body and high efficiency loss of heat, ensuring the normal working.
7.Professional design and super function which is 360 degree whole direction revolution. Grinding omnidirectional and more finer
8.Own design of gear and convenient to move.
9.Ensures the consistency and repeat-ability of the experiment.low noise,high efficiency,function comprehensive,small volume.
10.It can solute the problems for the deposition and sticking of some materials and four samples could be obtained with different sizes in one experiment.
11. MITR 360 degree omnidirectional planetary ball mill 2L is the motor direct connection
Techincal parameter:
| Model |
Spec |
With ball mill jar |
Remarks |
| |
|
Spec(ml) |
Quantities |
|
| QM-QX0.4L |
0.4L |
50-100ml |
2 or 4 |
With 50ml vacuum ball mill jar |
| QM-QX1L |
1L |
50-250ml |
2 or 4 |
With 50-100ml vacuum ball mill jar |
| QM-QX2L |
2L |
50-500ml |
2 or 4 |
With 50-250ml vacuum ball mill jar |
| QM-QX4L |
4L |
50-1000ml |
2 or 4 |
With100-500ml vacuum ball mill jar |
| QM-QX8L |
8L |
500-2000ml |
2 or 4 |
With250-1000ml vacuum ball mill jar |
| QM-QX10L |
10L |
500ml-2.5L |
2 or 4 |
With 250-2.5L vacuum ball mill jar |
| QM-QX12 |
12L |
1L-3L |
2 or 4 |
With 500-3L vacuum ball mill jar |
| QM-QX16 |
16L |
1L-4L |
2 or 4 |
With 500-4L vacuum ball mill jar |
| QM-QX20L |
20L |
1L-5L |
2 or 4 |
With 1000-5L vacuum ball mill jar |
| QM-QX40L |
40L |
4L-10L |
2 or 4 |
With 3L-10L vacuum ball mill jar |
| QM-QX60L |
60L |
6L-15L |
2 or 4 |
With 5L-15L vacuum ball mill jar |
| QM-QX80L |
80L |
6L-20L |
2 or 4 |
With 5L-20L vacuum ball mill jar |
| QM-QX100L |
100L |
10L-25L |
2 or 4 |
With 9L-25L vacuum ball mill jar |
Mill jars and Mill balls
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,corundum/alumina jar, zirconia jar, agate jar.nylon jar, PU jar, PTFE jar.We can also provide the balls material of stainless steel,ceramic,corundum,alumina,zirconia,agate, tungsten carbide.
Grinding Media
Company Information
Changsha Mitrcn Instrument Equipment Co., Ltd. specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
