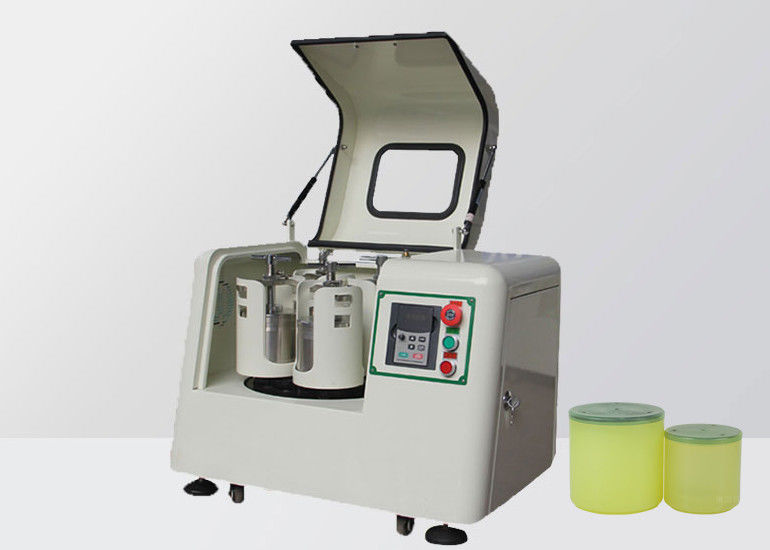

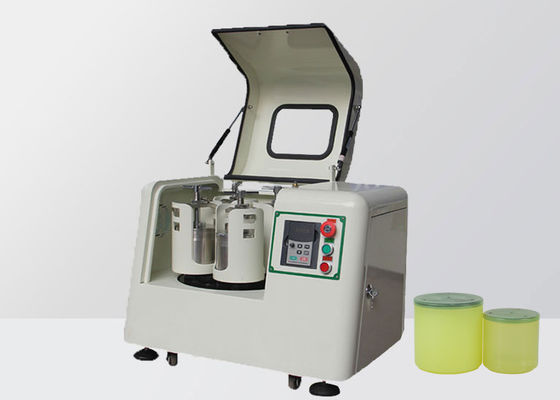

Benchtop Laoratory Ball Mill Grinder And Pulverizer With Polyurethane Jar
Application:
YXQM-2L laboratory planetary ball mill with 500ml polyurethane grinding jar which is suuface elasticity and finish.
Used the polyurethane grinding jar,the material won't adhere to its surface.
The other accessories would be shaker sieve and so on.
Feature:
1. Patented oil seal mute technology
2. PLC frequency conversion control
3. With own design for precision gear drive instead of original belt drive
4. Suitable for dry/wet/vacuum/protective atmosphere/low temperature/high temperature mill.
5. Ensures the Homogeneity and repeat-ability of the experiment.
6. It can solute the problems for the deposition and sticking of some materials
7. Two and four samples could be obtained at one time
8. Low center of gravity, stable performance, compact structure, convenient operation, safe and reliable, low noise, no pollution, low loss.
9. The device is equipped with a safety switch
10. There are universal wheels to push and run;And there are universal supporting feet for stable.
11. Safety automatic gear lock
Technical parameter:
| Model |
Voltage |
Motor power(KW) |
Inverter power KW |
Total timing
(min)
|
Alternating Run Time |
Rotation speed r/min |
Noise ≤db |
| Revolution speed |
Rotation speed |
| YXQM0.4L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM1L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM2L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM4L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM8L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM10L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM12L |
380V 50HZ |
1.5 |
2.2 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM16L |
380V 50HZ |
2.2 |
2.2 |
1-9999 |
1-9999 |
5-280 |
10-560 |
<58db |
| YXQM20L |
380V 50HZ |
3.0 |
3.7 |
1-9999 |
1-9999 |
5-230 |
10-460 |
<60db |
| YXQM40L |
380V 50HZ |
5.5 |
7.5 |
1-9999 |
1-9999 |
5-220 |
10-440 |
<63db |
| YXQM60L |
380V 50HZ |
7.5 |
7.5 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM80L |
380V 50HZ |
7.5 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM100L |
380V 50HZ |
11 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<68db |
Details:
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
