Name: Fiber Pulverization Grinding Laboratory Ball Mill Machine With Zirconium Jar
Brand: Changsha Mitrcn Instrument Equipment Co.,Ltd
SKU: YXQM-4L
Availability: InStock

Fiber Pulverization Grinding Laboratory Ball Mill Machine With Zirconium Jar

Large Image : Fiber Pulverization Grinding Laboratory Ball Mill Machine With Zirconium Jar

Product Details:

Place of Origin:	China
Brand Name:	MITR
Certification:	ISO9001:2008/CE
Model Number:	YXQM-4L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Export Standard Wooden Package
Delivery Time:	7-15 working days
Payment Terms:	TT,Western union
Supply Ability:	10set per week

Contact Now

Fiber Pulverization Grinding Laboratory Ball Mill Machine With Zirconium Jar

Description

Grinding Type:	Vertical Grinding Ball Mill	Revolution Speed:	400rpm
Rotation Speed:	800rpm	Electric:	220V 50HZ
Jar Qty:	2/4pcs	Noise:	Smaller Than 50db
Highlight:	laboratory ball mill machine , nano ball mill

Fiber Pulverization Grinding Equipment Lab Ball Mill 4L With Zirconium Jar

1. Main application

Size reduction, pulverization. Mainly used in the fields of electronic ceramics, structural ceramics, magnetic

materials, catalysts, biology, medicine, metallurgy, ceramics, lithium batteries, new materials, etc.

2. Working principle

4 jars installed on the main plate which runs clockwise simultaneously when the plate starts turning. Balls impact

material at high speed which grinds and mixes particles. Dry and wet grinding and mixing various material with

different granularities. Min. particle 0.1μm. 2 or 4 jars working at the same time. Max. capacity at 2/3 jar. Feeding

granularity: solid ≤10mm, others ≤3mm. Discharging Min. particle 0.1μm.

3 Parameter

Model	YXQM-4L
Electric	220V 50HZ
Power	0.75Kw
Inverter	0.75Kw
Grinding jar	50-1000ml
Vacuum jar	100-500ml
Revolution	5-400rpm
Rotation	10-800rpm
Noise	＜50db

Fiber Pulverization Grinding Laboratory Ball Mill Machine With Zirconium Jar 0

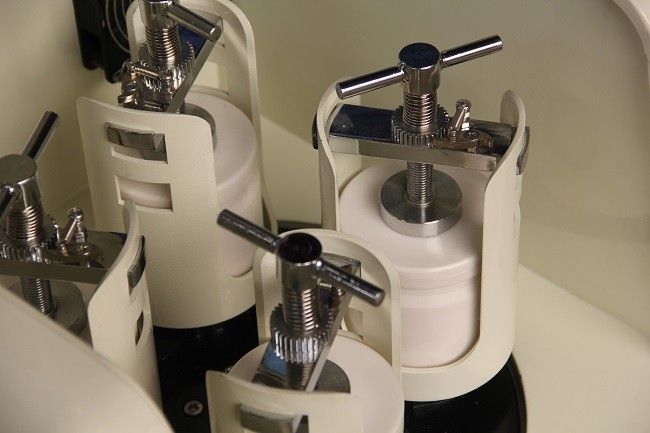

Zirconium Grinding jars:

Fiber Pulverization Grinding Laboratory Ball Mill Machine With Zirconium Jar 1
