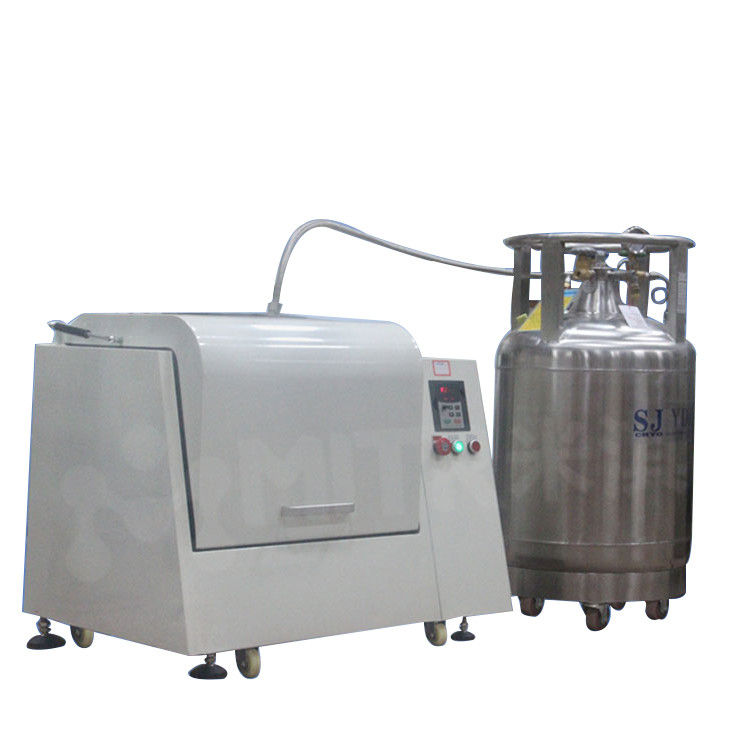

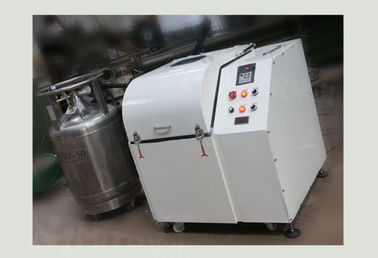

Small Vertical Lab Planetary Ball Mill Dry / Wet Grinding Machine With Low Temperature
Application:
It is widely used Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.
Feature:
1. Patent technology of oil seal mute and noise-reducing material to reduce noise and improve comfort.
2. Low power, low loss, low cost, low fault
3. Long service life, strong safety. It could meet the requirements of long time running and high strength experiment.
4. Samples could be dry/wet ground, and could be equipped with vacuum ball mill jar for vacuum grinding, pressurized grinding, inert gas grinding.
5. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.

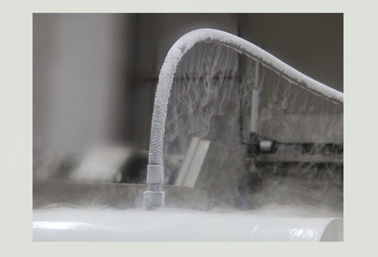

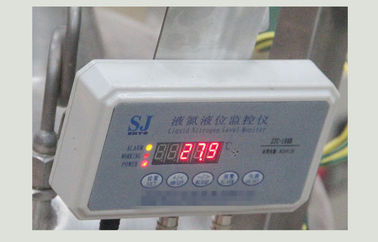

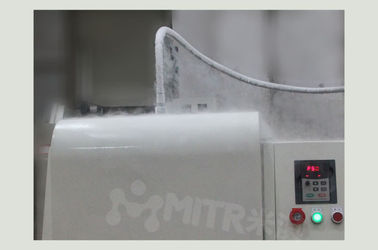

6. Ultra-low temperature treatment with liquid nitrogen cryogenic system.

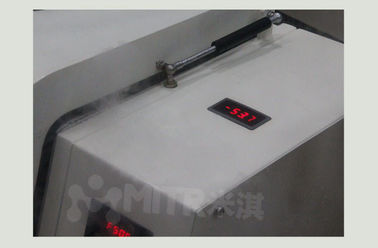

7. Detection of temperature and pressure in ball mill
8. Safety gear lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape.
9.When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
10.Low temperature with liquid nitrogen
There are three series of planetary ball mill: Vertical ball mill; Horizontal ball mill;Full direction ball mill
Technical parameter
| Model |
Spec |
Grinding jar matching |
Quantities |
Vacuum jar matching |
Speed revolution |
Speed rotation |
Power |
Voltage
(motor/inverter )
|
| YD-XQM1L |
1L |
50-250ml |
2 or 4 |
50-100ml |
10-450 |
20-900 |
220v50HZ |
0.55/0.55 |
| YD-XQM2L |
2L |
50ML-500ml |
2 or 4 |
50-250ml |
10-400 |
10-800 |
220v 50HZ |
0.75/0.75 |
| YD-XQM4L |
4l |
50-1L |
2 or 4 |
100-500ml |
10-400 |
10-800 |
220v 50HZ |
0.75/0.75 |
| YD-XQM8L |
8L |
500-2L |
2 or 4 |
250-1L |
10-320 |
20-640 |
220v 50HZ |
1.5/1.5 |
| YD-XQM12L |
12L |
1L-3L |
2 or 4 |
500-3L |
10-320 |
20-640 |
380v 50HZ |
1.5/1.5 |
| YD-XQM16L |
16L |
1L-4L |
2 or 4 |
500-4L |
10-280 |
20-560 |
380v 50HZ |
2.2/2.2 |
| YD-XQM20L |
20L |
1L-5L |
2 or 4 |
1L-5L |
10-230 |
20-460 |
380v 50HZ |
3/3.7 |
| YD-XQM40L |
40L |
4L-10L |
2 or 4 |
3L-10L |
10-220 |
20-440 |
380v 50HZ |
5.5/7.5 |
| YD-XQM60L |
60L |
6L-15L |
2 or 4 |
5L-15L |
10-180 |
20-360 |
380v 50HZ |
7.5/7.5 |
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
Join an exhibition
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
