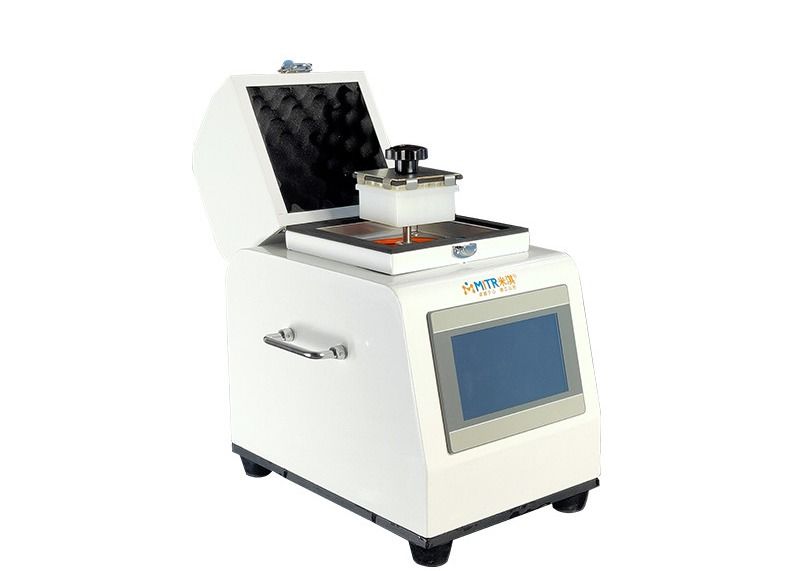

Tissue Grinder Extract Of Plant And Animal Tissue DNA RNA And Proteins
| Parameter |
MITR-H12 |
NITR-YZ24 |
MITR-YZ48 |
MITR-YZ64 |
MI1K-YZ96 |
| The capacity of sample in the adapter |
12*5ml 8* (7-15)ml 4*25ml 12*50ml |
24* (0.2-0.5ml) 24*2ml 16*5ml 12*5ml 8*(7-15)ml 4*25ml 12*50ml |
48* (0.2-0.5ml) 48*2ml 24*2ml 16*5ml 12*5ml 8*(7-15)ml 4*25ml 2*50ml |
64* (0.2-2ML) 64*2ML 2*2ml 16*5ml 12*5ml 8*(7*15)ml 4*25ml/2*50ml |
96* (0.2-0.5ML) 96*2ml 48*2ML 24*2ml 16*5ml 12*5ml 8*(7-15)ml 4*25ml /2*50ml |
| Weight |
36KG |
40KG |
| Application |
Tissue homogenization, grinding, cell breakage, homogenizing, material dispersion, preparation, sample mixing, oscillation |
| LCD |
Micro computer controled,7 inch screen,working status |
| 36 sets of experimental data |
With different experimental samples.animal tissue,bone age,skin,hair pattern |
| Speed |
10-70 HZ/M |
| Shockproof principle |
Franch technology ---schleiferr l operation |
| Adapter material |
PTFE or alloy steel |
| Grinding mathod |
Dry,wet,cryogenic grinding |
| Feeding size |
According to the adapter size |
| Final size |
~5um |
| Quantity of grinding jar |
＞2 |
| With antomatic fastening device |
Yes |
| Safety lock at work |
Protection |
| Grinding tool material |
Alloy steel,PTFE |
| Power |
220V/50HZ 2 phases |
| Working time |
0 's-99'm |
| Grinding ball size |
0.1-30mm |
| Grinding ball material |
Alloy steel,Chromium,Zirconium oxide,tungsten carbide,silica |
| Speed up |
High speed in 2 seconds |
| Speed down |
Low speed in 2 seconds |
| Noise Level |
<65db |
| Dimension |
280*400*530mm |
Application:
1. It is suitable for grinding and crushing samples of various plant tissues including roots, stems, leaves, flowers, fruits, seeds, etc;
2. It is suitable for grinding and crushing samples of various animal tissues including meat, skin, hair, lymph nodes, muscles, bones, etc.
3. It is suitable for grinding and crushing samples of fungi, bacteria, etc.
4. It is suitable for grinding and crushing samples of food and pharmaceutical composition analysis;
5. It is suitable for grinding such as volatile samples, oil shale, wax products, etc.
6. Applicable to grinding and crushing of plastics, polymers including PE,PS, textiles, resins and other samples.
7. Faster and more efficient extraction of plant and animal tissue DNA,RNA and proteins.
8. Faster and more efficient freeze-grinding, oscillatory mixing
9. Faster and more efficient bacteria, yeast sample cell wall breaking and lysis, only a few tens of seconds
10. Faster and more efficient food, feed sample grinding homogenization;
11. Faster and more efficient minerals, ore sample grinding and homogeneous, up to 100 nanometers
12. Faster, more efficient geographic analysis (atomic absorption, x fluorescence) and three-generation sequencing sample preparation.
Summary:
Tissue grinder is a special, fast, efficient and multi-tube consistent system. It can extract and purify raw DNA,RNA and proteins from any source (including soil, plant and animal tissues, bacteria, yeast, fungi, spores, paleontological specimens, etc.
Details:
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
