Semi Circle Planetary Lab Ball Mill With Stainless Steel Grinding Jar Low Noise

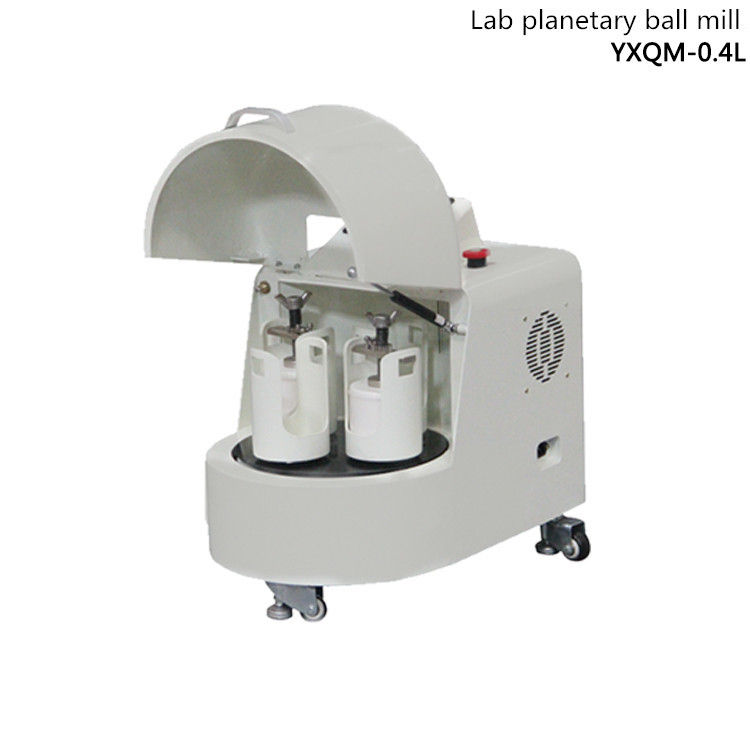

Large Image : Semi Circle Planetary Lab Ball Mill With Stainless Steel Grinding Jar Low Noise

Product Details:

Place of Origin:	China
Brand Name:	MITR
Certification:	ISO9001:2008/CE
Model Number:	YXQM-0.4L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Export Standard Wooden Package
Delivery Time:	7-15 working days
Payment Terms:	TT,Western union
Supply Ability:	10set per week

Contact Now

Semi Circle Planetary Lab Ball Mill With Stainless Steel Grinding Jar Low Noise

Description

Type:	Verticle	Revolution:	450rpm
Rotation:	900rpm	Current:	220V 50HZ
Jar Capacity:	2/4pcs	Sound:	Low Noise
Highlight:	laboratory ball mill machine , nano ball mill

Lab Ball Mill Semi Circle Planetary Ball Mill With Stainless Steel Grinding Jar

1.1. Main application

The products are mainly used in the fields of electronic ceramics, structural ceramics, magnetic materials, catalysts, biology, medicine, metallurgy, ceramics, lithium batteries, new materials, etc.

1.2. Operation principle

Planetary Ball Mill has four ball grinding jars installed on one turntable. When the turntable rotates, the jar axis makes planetary movements that the ball mill jar revolution around the axis of the rotary disc and at the same time it rotation around its axis. The balls and samples inside the jars are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm(1.0*10mm-4).

Working mode: Two or four ball milling jars working at the same time and the maximum sample loading amount: Volume of ball milling jar 2/3, feeding granularity: soil material ≤ 10mm other material ≤ 3mm discharge granularity: the minimum can up to 0.1um (i.e. 1.0 *10mm-4).

1.3 Parameter

Model	Power	Voltage KW	Frequency conversion power KW	Ball mill jar	Vacuum jar	Rotation Speed r/min		Noise≤db(A)
Model	Power	Voltage KW	Frequency conversion power KW	Ball mill jar	Vacuum jar	Revolution (adjustable)	Rotation(adjustable)	Noise≤db(A)
YXQM-0.4L	220V 50HZ	0.55	0.4	100ml	-	30-450	60-900	<60db
YXQM-1L	220V 50HZ	0.75	0.55	250ml	100ml	30-450	60-900	<60db
YXQM-2L	220V 50HZ	1.1	0.75	500ml	250ml	30-400	60-800	<60db
YXQM-4L	220V 50HZ	1.1	0.75	1000ml	500ml	30-400	60-800	<60db
YXQM-8L	220V 50HZ	1.5	1.5	2L	2L	30-320	60-640	<60db
YXQM-12L	380V 50HZ	1.5	2.2	3L	3L	30-320	60-640	<60db
YXQM-16L	380V 50HZ	3.0	4	4L	4L	30-280	60-460	<60db
YXQM-20L	380V 50HZ	3.0	4	5L	5L	30-230	60-460	<60db
YXQM-40L	380V 50HZ	3.0	4	10L	10L	30-220	60-440	<90db
YXQM-60L	380V 50HZ	4.0	5.5	15L	15L	30-180	60-360	<90db
YXQM-80L	380V 50HZ	7.5	7.5	20L	20L	30-160	60-320	<90db
YXQM-100L	380V 50HZ	11	11	25L	25L	30-160	60-320	<90db
