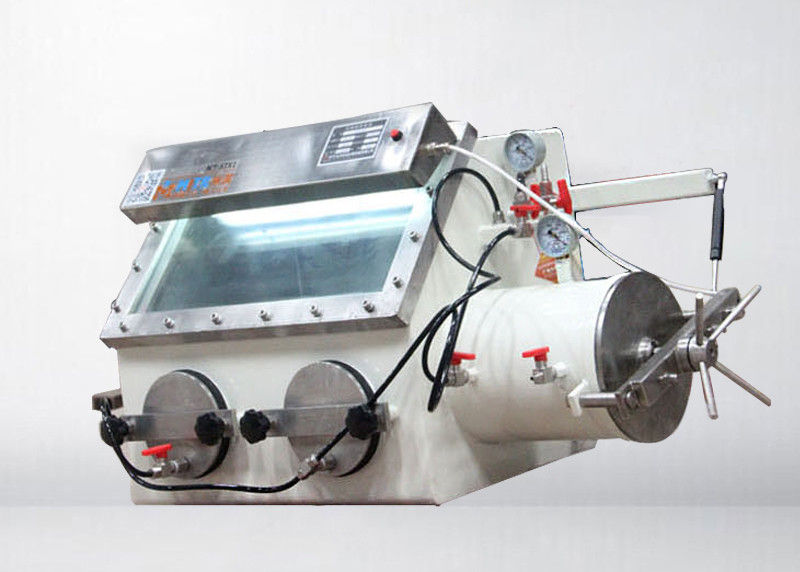

Stainless Steel Vacuum Glove Box Using For Lithium Baterry Laboratory

Stainless Steel Vacuum Glove Box Uesed For Lithium Baterry Laboratory​

Main Application

1. In cooperation with scientific research units in the experimental work of low-energy radioactive substances,aseptic operation of microorganism inoculation and chemical qualitative and quantitative analysis and other closed isolation operations can be carried out in the operation box.

2. It need to in a protective atmosphere for processing used in biochemical, metallurgical, electronic, chemical, geological, mineral, medicine, magnetic materials, equipment batteries, biological cultivation, food packaging, battery materials and so on

3. It is the ideal device for institutions of higher learning, research institutes,enterprises laboratory to carry out scientific experiments.

Main Features

1. Two transition boxes is unique design in the market. It guarantee the working environment in the studio,save protection atmosphere and operating time

2. The entire cabinet is made of stainless steel,and corrosion resistant and easy to clean,no pollution.

3. The visual window is wide,clear and bright.

4. There is a porous electrical socket in the glove box,which is convenient to scientific experiments

5. Can be equipped with electric furnace in the box for partial heating.

6. Operating gloves are reliable and sealed with thick latex gloves;

Catalog and Technical Parameter:

Model	Specification(mm)L×D×H	Dimension of transition room(mm)	Dimension of smaller transition room(mm)	Rack	Glove round door diameter	Weight (kg)	Stainless steel thickness	Tray in the transition room
MT-STX1	600*450*500	Φ200*270	no	no	Φ145mm	120	6mm	no
MT-STX2	800*600*700	Φ280*350	no	One	Φ200mm	230	6mm	no
MT-STX3	1200*700*900	Φ340*400	Φ120*160	One	Φ200mm	330	6mm	yes

Model	Vacuum value	Power	Lamp	Valve configure	Dimension of	weight	Gas
MT-STX1	-0.1Mpa	10A 220V	One	Two admission valve Two outlet valve	60*30	130kg	Ar He Ni purity 99.99％
MT-STX2					75*40	230kg
MT-STX3					120*50	350kg
