Stainless Steel Vibratory Sieve Shaker Machine For Slurry Material Separation

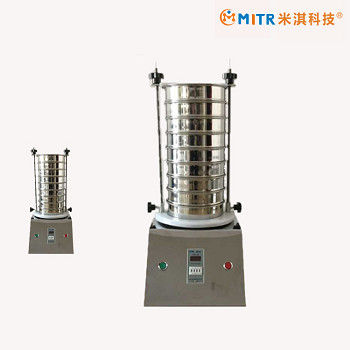

Large Image : Stainless Steel Vibratory Sieve Shaker Machine For Slurry Material Separation

Product Details:

Place of Origin:	China
Brand Name:	MITR
Certification:	ISO9001:2008/CE
Model Number:	ZDS200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Export Standard Wooden Package
Delivery Time:	7-15 working days
Payment Terms:	TT,Western union
Supply Ability:	10set per week

Contact Now

Stainless Steel Vibratory Sieve Shaker Machine For Slurry Material Separation

Description

Material:	Stainless Steel	Sieve Layer:	7 Layer
Sieve Diameter:	200mm	Sieve Material:	Stainless Steel
Electric Supply:	220V 50HZ	Power:	0.125Kw
Dimension:	400300300+N*50	Weight:	30Kg
Highlight:	sieve shaker machine , sieve shaker equipment

Function Principle

ZDS-200, ZDS-300 are standard sieve shakers. Each vibratory sieve shaker is equipped with a vibrating motor that moves the product to be sieved equally over the whole sieving surface.
Performance Parameter

No.	Description	QTY	Unit
1	Sieve diameter	Ø300-Ø200-Ø100-Ø75	mm
2	Measuring range	0.025~3	mm
3	Motor power	0.125	Kw
4	Sound	Less than50	dB
5	Amplitude	0~3	Mm
6	Speed	1420	rpm
7	Overall dimension	400300300+N*50	LWH
8	Current	220;50	V;HZ
9	Weight	30	Kg

Product models

Description	Model	Sieve OD	Layer	Material	mesh
Experimental sieve shaker	ZDS200-1	200mm	1-6	Nylon	10/20/40/60/100/200
Experimental sieve shaker	ZDS200-2	200mm	1-6	Stainless steel	10/20/40/60/100/200
Experimental sieve shaker	ZDS200-3	200mm	1-6	Nylon	10/20/40/60/100/200
Experimental sieve shaker	ZDS200-4	200mm	1-6	Stainless steel	10/20/40/60/100/200
Vibrating sieve shaker	ZDS300-1	300mm	1-3	Stainless steel	40/100/200

Application

Testing, sieving, granularity analyzing and impurity analyzing of solid, powder, slurry on various industries such as food, medicine, chemicals, pigments, minerals, metallurgy, geology, ceramics, ...
