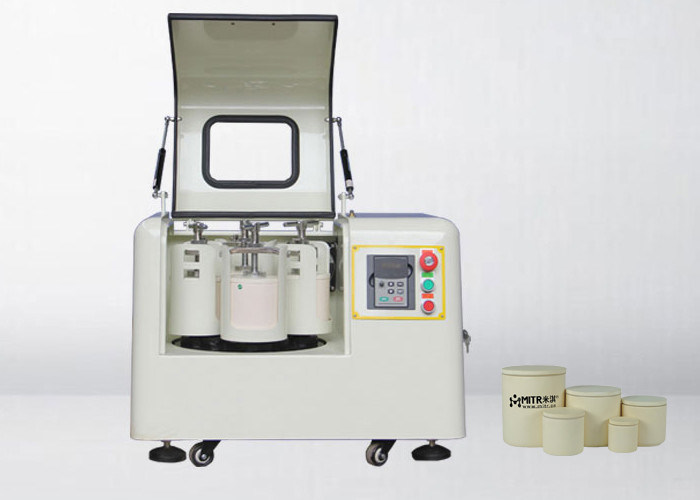

Vertical Planetary Ball Mill Nano Super Fine Powder Grinding Machine
Application:
MITR Planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanomaterail,R&D of new product and small batch production for high tech materials. The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,enterprise laboratory(Four samples can be obtained at the same time in each experiment). The samples could be ground under vacuum state with using the vacuum ball mill jars.
Feature:
1. innovative design, beautiful and humanized apperance;
2. Our machines run very quietly with noise <50 (dB
3. Compact structure, light weight, space saving;
4. For working station, 4 different kinds of material can be grinded at the same time;
5. Can rotate clockwise and unticlockwise alternatively, stepless speed regulation, setting time, safety protection, power off memory, data storage and so on.
6. Safety automatic gear lock design
Technical parameter:
| Model |
Voltage |
Motor power(KW) |
Inverter power KW |
Total timing
(min)
|
Alternating Run Time |
Rotation speed r/min |
Noise ≤db |
| Revolution speed |
Rotation speed |
| YXQM0.4L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM1L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM2L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM4L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM8L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM10L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM12L |
380V 50HZ |
1.5 |
2.2 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM16L |
380V 50HZ |
2.2 |
2.2 |
1-9999 |
1-9999 |
5-280 |
10-560 |
<58db |
| YXQM20L |
380V 50HZ |
3.0 |
3.7 |
1-9999 |
1-9999 |
5-230 |
10-460 |
<60db |
| YXQM40L |
380V 50HZ |
5.5 |
7.5 |
1-9999 |
1-9999 |
5-220 |
10-440 |
<63db |
| YXQM60L |
380V 50HZ |
7.5 |
7.5 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM80L |
380V 50HZ |
7.5 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM100L |
380V 50HZ |
11 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<68db |
Details:
In the use of the planetary ball mill, the sample processing needs to be carried out in the ball mill jar through the action of the grinding media. Therefore, the ball mill jar and the ball mill media are indispensable and main accessories of the planetary ball mill. There are more than ten kinds of different materials and more than 200 kinds of experimental schemes of ball mill c and milling media developed by MITR Technology which can be combined and selected. Different treatment results can be achieved when the samples with different physical and chemical properties are treated.
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
