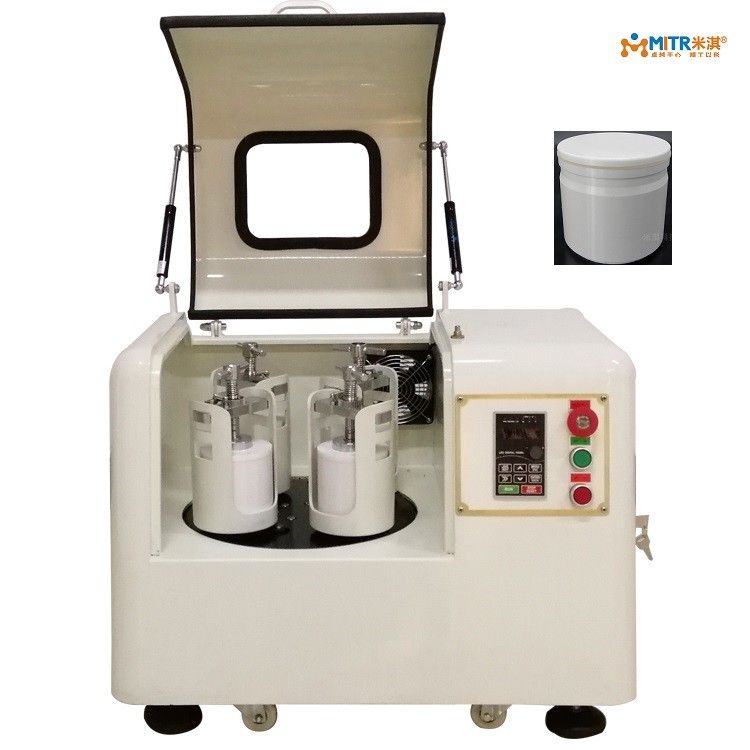

Name: Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise
Brand: Changsha Mitrcn Instrument Equipment Co.,Ltd
SKU: YXQM-2L
Availability: InStock

Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise

Large Image : Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise

Product Details:

Place of Origin:	China
Brand Name:	MITR
Certification:	ISO9001:2008/CE
Model Number:	YXQM-2L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Export Standard Wooden Package
Delivery Time:	7-15 working days
Payment Terms:	TT,Western union
Supply Ability:	10set per week

Contact Now

Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise

Description

Type:	Verticle	Revolution:	400rpm
Rotation:	800rpm	Current:	220V 50HZ
Jar Capacity:	2/4pcs	Sound:	Low Noise
Highlight:	laboratory ball mill machine , nano ball mill

Metal Alloying Equipment Lab Ball Mill 2L Powdering Device

1. Main application

Size reduction, pulverization. Mainly used in the fields of electronic ceramics, structural ceramics, magnetic

materials, catalysts, biology, medicine, metallurgy, ceramics, lithium batteries, new materials, etc.

2. Working principle

4 jars installed on the main plate which runs clockwise simultaneously when the plate starts turning. Balls impact

material at high speed which grinds and mixes particles. Dry and wet grinding and mixing various material with

different granularities. Min. particle 0.1μm. 2 or 4 jars working at the same time. Max. capacity at 2/3 jar. Feeding

granularity: solid ≤10mm, others ≤3mm. Discharging Min. particle 0.1μm.

3 Parameter

Model	YXQM-2L
Electric	220V 50HZ
Power	0.75Kw
Inverter	0.75Kw
Grinding jar	50-500ml
Vacuum jar	50-250ml
Revolution	5-400rpm
Rotation	10-800rpm
Noise	＜50db

Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise 0

Grinding jars:

Verticle Metal Alloying Lab Ball Mill Equipment 2L Powdering Device Low Noise 1

Tag:

Contact Person: Miss. Candy Lee

Tel: +8618153792542

Fax: 86-731-85577944
