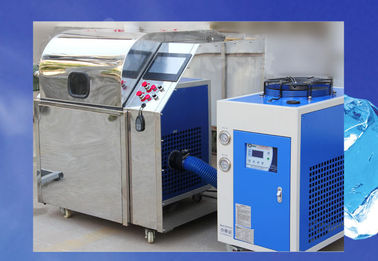

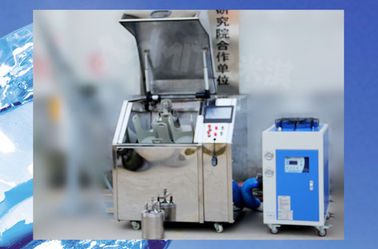

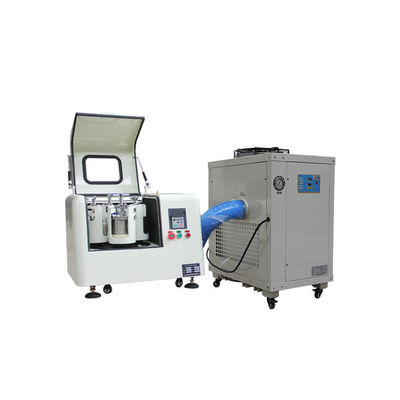

Cryogenic Cool Air Small Lab Ball Mill Grinding Machine 2L For Laboratory Pulverizing
Application:
It is widely used Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.
Feature:
- Oil seal mute technology
- Elegant design, easy to operate
- Ideal for wet or dry grinding application
- Automatic and programmable control with LED display
- Multiple grinding modes to choose
- High Uniformity and excellent repeatability
- Fast rotational speed, high efficiency and fine granularity
- Digital display of the actual rotational speed of the grinding jar
- Four samples with different sizes and materials in one experiment
- Programmable interval and pause times and grinding sequences
- Stepless speed regulation, reversing function
- Smaller grinding jars also possible with an adapter
- Gear-drive offers an effective solution to problems caused by belt driving
- Safety stirrup lock, easy to install and disassemble.
7.When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
8.The temperature could be down to 0-30℃ with circulating cold air .
Technical parameter:
| Model |
Spec |
Grinding jar matching |
Quantities |
Air condition |
Speed (revolution ) |
Speed rotation |
Power |
Temperature range |
| XH-XQM1L |
1L |
50-250ml |
2 or 4 |
2P |
10-450 |
20-900 |
220v |
0-30℃ |
| XH-XQM2L |
2L |
50ML-500ml |
2 or 4 |
2P |
10-400 |
10-800 |
220v |
0-30℃ |
| XH-XQM4L |
4l |
50-1L |
2 or 4 |
2P |
10-400 |
10-800 |
220v |
0-30℃ |
| XH-XQM8L |
8L |
2L |
2 or 4 |
2P |
10-320 |
20-640 |
220v |
0-30℃ |
| XH-XQM12L |
12L |
3L |
2 or 4 |
3P |
10-320 |
20-640 |
380v |
0-30℃ |
| XH-XQM16L |
16L |
4L |
2 or 4 |
3P |
10-280 |
20-560 |
380v |
0-30℃ |
| XH-XQM20L |
20L |
5L |
2 or 4 |
3P |
10-280 |
20-560 |
380v |
0-30℃ |
| XH-XQM40L |
40L |
10L |
2 or 4 |
3P |
10-220 |
20-440 |
380v |
0-30℃ |
| XH-XQM60L |
60L |
15L |
2 or 4 |
3P |
10-180 |
20-360 |
380v |
0-30℃ |
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
Join an exhibition
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
Our factory shops:
Our company office:
