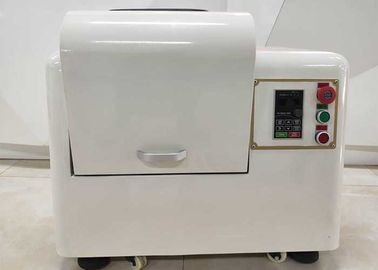

High Energy Planetary Lab Ball Mills 1l Vertical Nano Powder Grinding Mahine
Introduction:

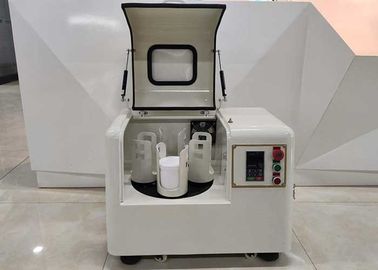

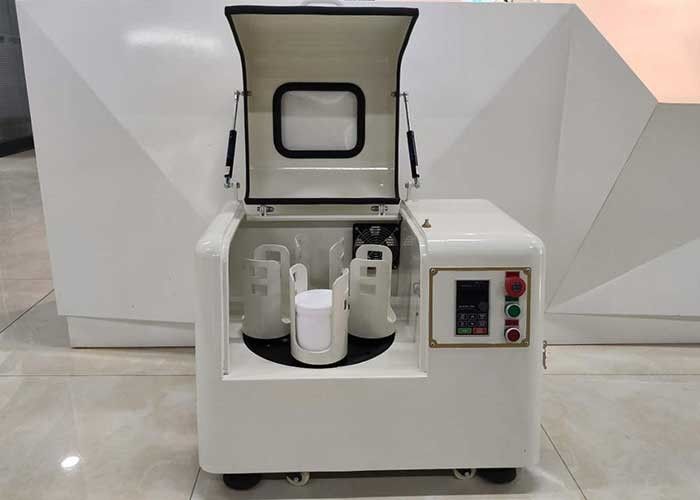

Our planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm).
Application Area of lab vertical planetary ball mill:
Geology and Mineralogy: rock, gravel, sand, minerals
Ceramics: porcelain, sintered ceramics, clay, fireclay
Chemistry: pesticides, fertilisers, salts, inorganic and organic materials
Biology: plants, leaves, freeze-dried samples
Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets
Metallurgy: ores, sinters
Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating
Feature:
1.Oil seal mute technology and gear drive core technology,noise reduced by 50%,increase service life more than 2 times

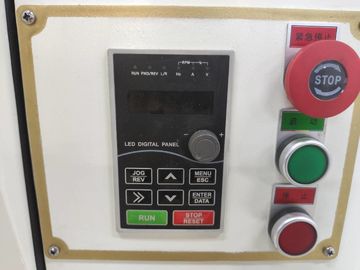

2. PLC frequency conversion control:the inverter has the protection of undervoltage and overcurrent, and has the memory after the power off, so it can protect the motor.
3. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.
4. Ultra-low temperature treatment with liquid nitrogen cryogenic system.
5. Detection of temperature and pressure in ball mill
6. Safety gear lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape.
7.There are universal wheels to push and run when carrying;When operating, there are universal supporting feet for stable.
There are three series of planetary ball mill: Vertical ball mill; Horizontal ball mill;Full direction ball mill
Technical parameter:
| Model |
Spec |
With ball mill jar |
Remarks |
| |
|
Spec(ml) |
Quantities |
|
| YXQM-0.4L |
0.4L |
50-100ml |
2 or 4 |
With 50ml vacuum ball mill jar |
| YXQM-1L |
1L |
50-250ml |
2 or 4 |
With 50-100ml vacuum ball mill jar |
| YXQM-2L |
2L |
50-500ml |
2 or 4 |
With 50-250ml vacuum ball mill jar |
| YXQM-4L |
4L |
50-1000ml |
2 or 4 |
With100-500ml vacuum ball mill jar |
| YXQM-8L |
8L |
500-2000ml |
2 or 4 |
With250-1000ml vacuum ball mill jar |
| YXQM-10L |
10L |
500ml-2.5L |
2 or 4 |
With 250-2.5L vacuum ball mill jar |
| YXQM-12L |
12L |
1L-3L |
2 or 4 |
With 500-3L vacuum ball mill jar |
| YXQM-16 |
16L |
1L-4L |
2 or 4 |
With 500-4L vacuum ball mill jar |
| YXQM-20L |
20L |
1L-5L |
2 or 4 |
With 1000-5L vacuum ball mill jar |
| YXQM-40L |
40L |
4L-10L |
2 or 4 |
With 3L-10L vacuum ball mill jar |
| YXQM-60L |
60L |
6L-15L |
2 or 4 |
With 5L-15L vacuum ball mill jar |
| YXQM-80L |
80L |
6L-20L |
2 or 4 |
With 5L-20L vacuum ball mill jar |
| YXQM-100L |
100L |
10L-25L |
2 or 4 |
With 9L-25L vacuum ball mill jar |
| Model |
Voltage |
Motor power(KW) |
Inverter power KW |
Total timing
(min)
|
Alternating Run Time |
Rotation speed r/min |
Noise ≤db |
| Revolution speed |
Rotation speed |
| YXQM0.4L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM1L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM2L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM4L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM8L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM10L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM12L |
380V 50HZ |
1.5 |
2.2 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM16L |
380V 50HZ |
2.2 |
2.2 |
1-9999 |
1-9999 |
5-280 |
10-560 |
<58db |
| YXQM20L |
380V 50HZ |
3.0 |
3.7 |
1-9999 |
1-9999 |
5-230 |
10-460 |
<60db |
| YXQM40L |
380V 50HZ |
5.5 |
7.5 |
1-9999 |
1-9999 |
5-220 |
10-440 |
<63db |
| YXQM60L |
380V 50HZ |
7.5 |
7.5 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM80L |
380V 50HZ |
7.5 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM100L |
380V 50HZ |
11 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<68db |
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
