Product Details:
|
| Name: | Planetary Ball Mill | Application: | Pharmaceuticals,food,geology,metallurgy,agriculture,glass,ceramics,aviation Chemicals,biology,materials,lithium Power,electronics,plants, Biology And So On. |
|---|---|---|---|
| Power: | 380V 50HZ 2.2KW | Dimension: | 100*73*78cm/390kg |
| Jar Volume: | 1L-4L | Revolution: | 5-280r/min |
| Rotation: | 10-560r/min | Feeding: | Soil Material≤10mm,others ≤3mm |
| Discharge: | Minimum Down To 0.1μm | Material: | Carbon Steel |
| High Light: | planetary ball milling machine,lab milling equipment |
||

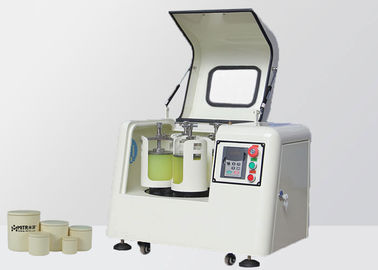

MITR planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanomaterail,R&D of new product and small batch production for high tech materials. The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,enterprise laboratory(Four samples can be obtained at the same time in each experiment). The samples could be ground under vacuum state with using the vacuum ball mill jars.
Technical parameter:
| Model | Spec | With ball mill jar | Remarks | |
| Spec(ml) | Quantities | |||
| YXQM-0.4L | 0.4L | 50-100ml | 2 or 4 | With 50ml vacuum ball mill jar |
| YXQM-1L | 1L | 50-250ml | 2 or 4 | With 50-100ml vacuum ball mill jar |
| YXQM-2L | 2L | 50-500ml | 2 or 4 | With 50-250ml vacuum ball mill jar |
| YXQM-4L | 4L | 50-1000ml | 2 or 4 | With100-500ml vacuum ball mill jar |
| YXQM-8L | 8L | 500-2000ml | 2 or 4 | With250-1000ml vacuum ball mill jar |
| YXQM-10L | 10L | 500ml-2.5L | 2 or 4 | With 250-2.5L vacuum ball mill jar |
| YXQM-12L | 12L | 1L-3L | 2 or 4 | With 500-3L vacuum ball mill jar |
| YXQM-16 | 16L | 1L-4L | 2 or 4 | With 500-4L vacuum ball mill jar |
| YXQM-20L | 20L | 1L-5L | 2 or 4 | With 1000-5L vacuum ball mill jar |
| YXQM-40L | 40L | 4L-10L | 2 or 4 | With 3L-10L vacuum ball mill jar |
| YXQM-60L | 60L | 6L-15L | 2 or 4 | With 5L-15L vacuum ball mill jar |
| YXQM-80L | 80L | 6L-20L | 2 or 4 | With 5L-20L vacuum ball mill jar |
| YXQM-100L | 100L | 10L-25L | 2 or 4 | With 9L-25L vacuum ball mill jar |
| Model | Voltage | Motor power(KW) | Inverter power KW |
Total timing (min) |
Alternating Run Time | Rotation speed r/min | Noise ≤db | |
| Revolution speed | Rotation speed | |||||||
| YXQM0.4L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 5-450 | 10-900 | <50db |
| YXQM1L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 5-450 | 10-900 | <50db |
| YXQM2L | 220V 50HZ | 0.75 | 0.75 | 1-9999 | 1-9999 | 5-400 | 10-800 | <50db |
| YXQM4L | 220V 50HZ | 0.75 | 0.75 | 1-9999 | 1-9999 | 5-400 | 10-800 | <50db |
| YXQM8L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM10L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM12L | 380V 50HZ | 1.5 | 2.2 | 1-9999 | 1-9999 | 5-320 | 10-640 | <58db |
| YXQM16L | 380V 50HZ | 2.2 | 2.2 | 1-9999 | 1-9999 | 5-280 | 10-560 | <58db |
| YXQM20L | 380V 50HZ | 3.0 | 3.7 | 1-9999 | 1-9999 | 5-230 | 10-460 | <60db |
| YXQM40L | 380V 50HZ | 5.5 | 7.5 | 1-9999 | 1-9999 | 5-220 | 10-440 | <63db |
| YXQM60L | 380V 50HZ | 7.5 | 7.5 | 1-9999 | 1-9999 | 5-180 | 10-360 | <65db |
| YXQM80L | 380V 50HZ | 7.5 | 11 | 1-9999 | 1-9999 | 5-180 | 10-360 | <65db |
| YXQM100L | 380V 50HZ | 11 | 11 | 1-9999 | 1-9999 | 5-180 | 10-360 | <68db |
Application:
It is widely used Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.
Feature:
1. Patented oil seal mute technology and gear drive.Noise <50db
2. Elegant design, easy to operate
3. Ideal for wet or dry grinding application
4.Adopting advanced famous brand components: Motor and Frequency Inverter
5.High Uniformity and excellent repeatability
6.Automatic and programmable control with LED display
7.Can be operated continuously, one-way running, automatic positive and reverse continuous and regular operation
8.Safety stirrup lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape.
9.When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
