Product Details:
|
| Name: | Planetary Ball Mill | Application: | Pharmaceuticals,food,geology,metallurgy,agriculture,glass,ceramics,aviation Chemicals,biology,materials,lithium Power,electronics,plants, Biology And So On. |
|---|---|---|---|
| Power: | 380V 50HZ 2.2KW | Dimension: | 100*73*78cm |
| Jar Volume: | 1L-4L | Revolution: | 5-280r/min |
| Rotation: | 10-560r/min | Feeding: | Soil Material≤10mm,others ≤3mm |
| Discharge: | Minimum Down To 0.1μm | Temperature: | -60℃-20℃ |
| High Light: | planetary ball milling machine,lab milling equipment |
||
Technical parameter:
| Model | Spec | Grinding jar matching | Quantities | Vacuum jar matching | Speed revolution | Speed rotation | Power |
Voltage (motor/inverter ) |
| YD-XQM1L | 1L | 50-250ml | 2 or 4 | 50-100ml | 10-450 | 20-900 | 220v50HZ | 0.55/0.55 |
| YD-XQM2L | 2L | 50ML-500ml | 2 or 4 | 50-250ml | 10-400 | 10-800 | 220v 50HZ | 0.75/0.75 |
| YD-XQM4L | 4l | 50-1L | 2 or 4 | 100-500ml | 10-400 | 10-800 | 220v 50HZ | 0.75/0.75 |
| YD-XQM8L | 8L | 500-2L | 2 or 4 | 250-1L | 10-320 | 20-640 | 220v 50HZ | 1.5/1.5 |
| YD-XQM12L | 12L | 1L-3L | 2 or 4 | 500-3L | 10-320 | 20-640 | 380v 50HZ | 1.5/1.5 |
| YD-XQM16L | 16L | 1L-4L | 2 or 4 | 500-4L | 10-280 | 20-560 | 380v 50HZ | 2.2/2.2 |
| YD-XQM20L | 20L | 1L-5L | 2 or 4 | 1L-5L | 10-230 | 20-460 | 380v 50HZ | 3/3.7 |
| YD-XQM40L | 40L | 4L-10L | 2 or 4 | 3L-10L | 10-220 | 20-440 | 380v 50HZ | 5.5/7.5 |
| YD-XQM60L | 60L | 6L-15L | 2 or 4 | 5L-15L | 10-180 | 20-360 | 380v 50HZ | 7.5/7.5 |
Application:
Our planetary ball mill is widely used Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.
Feature:
1. Patented oil seal mute technology and gear drive core technology,noise reduced by 50%,increase service life more than 2 times
2. PLC frequency conversion control:the inverter has the protection of undervoltage and overcurrent, and has the memory after the power off, so it can protect the motor.
3. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.

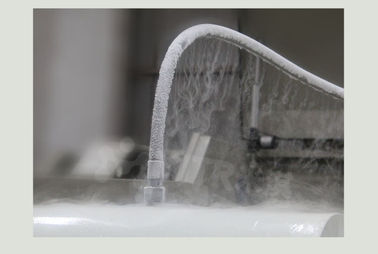

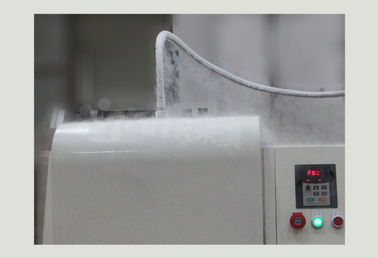

4. Ultra-low temperature treatment with liquid nitrogen cryogenic system.

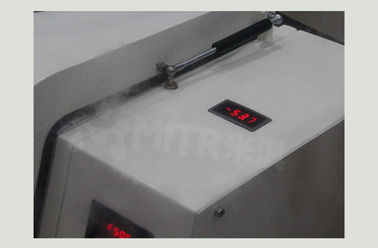

5. Detection of temperature and pressure in ball mill
6. Safety stirrup lock, easy to install and disassemble, easy to loosen, safe and reliable, simple and easy to use, delicate design and beautiful shape.
7.When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
Details:
Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
Join an exhibition
Exhibition:
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
