360 Degree Roation Laboratory Ball Mill Machine , Wet Ball Mill Gear Drive Type

Low Noise Rotary All Direction Ball Mill Laboratory Wet Grinding Planetary Ball Mill

Catalog:

Application:
It is widely used in geology,mineral,metallurgy,electronic,building material,ceramic,chemical,light industry,medicine,beauty,environment production,tea and so on. Our company have the laboratory with 1000 sets of application cases and maybe could provide you some suggestion.

Soil: crushing and grinding of soil sand with different physical properties

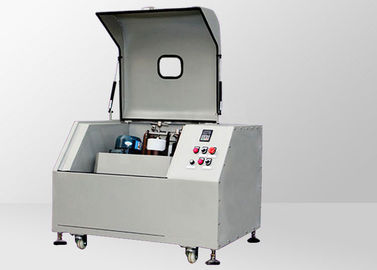

Feature of MITR 360 degree full direction planetary ball mill

1.Window: which could see clearly in the room

2..Pneumatic bar stay: Which bracing the cover on working and convenient and safety operation

3.Damping blanket: Which inlaid on the edge of the cover to prevent the noise and damage when open and close the cover.

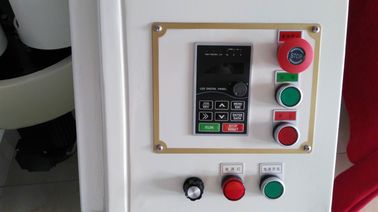

4.Operation panel:It is convenient to operate and flexible operation

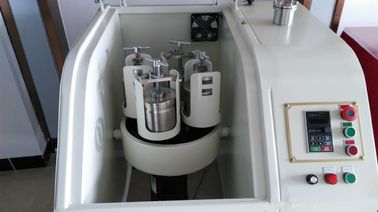

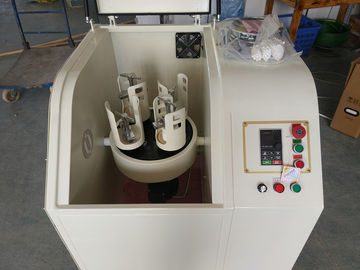

5.Grinding with four ball mill jars:We adopted the new style pressure bar,the revolution speed is stable and high efficiency and the granularity finer

6.Under high speed working,effectively enhance the air flowing speed of the body and high efficiency loss of heat, ensuring the normal working.

7.Professional design and super function which is 360 degree whole direction revolution. Grinding omnidirectional and more finer

8.Own design of gear and convenient to move.

9.Ensures the consistency and repeat-ability of the experiment.low noise,high efficiency,function comprehensive,small volume.

10.It can solute the problems for the deposition and sticking of some materials and four samples could be obtained with different sizes in one experiment.

11. MITR 360 degree omnidirectional planetary ball mill 2L is the motor direct connection

Techincal parameter:

Brand Name	MITR
Model	360 degree rotating omnidirectional planetary ball mill- MITR-QMQX-8L
Single Jar Grinding and Total Volume	2L*4=8L(Vacuum jar selection 250ml-500ml)
General grinding jar material selection	Metal material selection:304 stainless steel,Tungsten carbide(YG8)
	Nonmetal material selection:ceramic / corundum / alumina, zirconia, agate
	high polymer material selection:Nylon, polyurethane, polytetrafluoroethylene(PTFE)
General grinding ball material selection	Stainless steel,ceramic,corundum,alumina,zirconia, agate, tungsten carbide
Maximum loading per jar	Raw material and grinding ball less than 1/3 of grinding jar
Feeding granularity	Friable material less than 10mm,others less than 3mm
Discharging granularity	minimum up to 0.1μm
Grinding Method	Dry grinding / wet grinding / high energy alloying grinding / vacuum grinding(need customized) / low temperature grinding(need customized)
Planetary speed (variable frequency adjustable)	Max Revolution 5-320r/min,Rotation 10-640r/miPlanetary total speed:0-1200r/min
360 degree speed(variable frequency adjustable)	1-14/min
speed ratio(revolution:rotation)	1:2
Adjusting speed control method	PLC Frequency conversion control system,Touch screen control system
Driving style	Gear drive
Grinding ball ratio(the detail ratio contact customer service)The right sheet is just for reference.In fact that we are matching according to the customer requirement.	General grinding over 800 mesh(5mm;10mm;15mm) feeding material less than 3mm
	Fine grinding 800-1500 mesh(3mm;5mm;10mm;)feeding material less than 1mm
	Super fine grinding over 1500 mesh(0.1~10μm)(1mm;3mm;5mm)feeding material less than 200 mesh
Voltage	380v
Motor Power	1.5Kw
Working method	Two or four jars working at the same time
Maximum continue working time	72h(Timing 0-9999h)
Programmed control	The ball grinding used for high-tech micro computer chip control.It can run alternately for positive turn and reverse turn(0-999min), and run alternately for positive turn and pause,reverse and pause,and than positive run. It is especially suitable for cooling or intermittent operation.
Weight	290kg
Dimension	106*96*106cm
Features (direct motor connection)	The only one which have the drive mode with speed reducer with motor direct drive in the market,have replaced of traditional belt drive mode.In the past, the ball mill was mainly driven by a belt, and all the gravity is on the belt. After running for a long time, the belt is easy to aging, skid, fracture and so on. There is the direct speed reducer with motor to installed into the planetary master disk in our company,its stability is more 5 times higher than that of belt.And also there is no belt replacement every 3 months during the later maintenance.It has applied for patent protection for planetary ball mill with motor direct drive.

Mill jars and Mill balls

Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,corundum/alumina jar, zirconia jar, agate jar.nylon jar, PU jar, PTFE jar.We can also provide the balls material of stainless steel,ceramic,corundum,alumina,zirconia,agate, tungsten carbide.
