Planetary Ball Mill Used In Crushing And Grinding Of Soils With Zirconium Jar
Application:

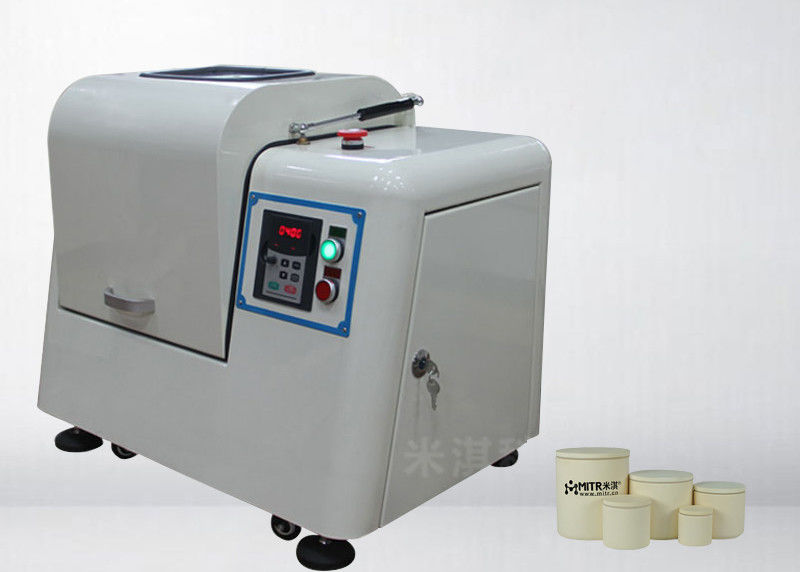

YXQM-1L laboratory planetary ball mill used in crushing and grinding of soils with different physical properties.
It could match the zirconium oxide grinding jar or agate grinding jar with zirconium oxide balls.
The other accessories would be shaker sieve and so on.
Feature:
1. Safety stirrup lock,easy to install and disassemble,easy to loosen,safe and reliable, simple and easy to use,delicate design and beautiful shape.
2. PLC frequency conversion control:the inverter has the protection of undervoltage and overcurrent, and has the memory after the power off, so it can protect the motor.
3. With own design for precision gear drive instead of original belt drive,such as belt easy to slip and unstable speed.
4. Ultra-low temperature treatment with liquid nitrogen cryogenic system.
5. Detection of temperature and pressure in ball mill
6. Patented oil seal mute technology and gear drive core technology,noise reduced by 50%,increase service life more than 2 times
7. When carrying, there are universal wheels to push and run;When operating, there are universal supporting feet for stable.
Technical parameter:
| Model |
Voltage |
Motor power(KW) |
Inverter power KW |
Total timing
(min)
|
Alternating Run Time |
Rotation speed r/min |
Noise ≤db |
| Revolution speed |
Rotation speed |
| YXQM0.4L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM1L |
220V 50HZ |
0.55 |
0.55 |
1-9999 |
1-9999 |
5-450 |
10-900 |
<50db |
| YXQM2L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM4L |
220V 50HZ |
0.75 |
0.75 |
1-9999 |
1-9999 |
5-400 |
10-800 |
<50db |
| YXQM8L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM10L |
220V 50HZ |
1.5 |
1.5 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM12L |
380V 50HZ |
1.5 |
2.2 |
1-9999 |
1-9999 |
5-320 |
10-640 |
<58db |
| YXQM16L |
380V 50HZ |
2.2 |
2.2 |
1-9999 |
1-9999 |
5-280 |
10-560 |
<58db |
| YXQM20L |
380V 50HZ |
3.0 |
3.7 |
1-9999 |
1-9999 |
5-230 |
10-460 |
<60db |
| YXQM40L |
380V 50HZ |
5.5 |
7.5 |
1-9999 |
1-9999 |
5-220 |
10-440 |
<63db |
| YXQM60L |
380V 50HZ |
7.5 |
7.5 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM80L |
380V 50HZ |
7.5 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<65db |
| YXQM100L |
380V 50HZ |
11 |
11 |
1-9999 |
1-9999 |
5-180 |
10-360 |
<68db |
Details:

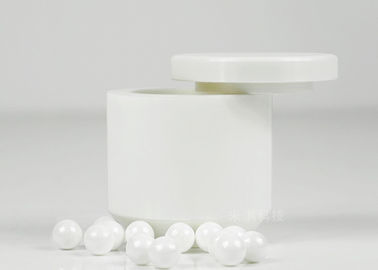

Ball Mill Jars And Ball Mill Grinding Media
Our factory can provide 304 stainless steel jar,Tungsten carbide jar(YG8),ceramic jar,alumina jar,zirconia jar,agate jar.Nylon jar, Polyurethane jar, PTFE jar.we can also provide grinding media stainless steel,ceramic,corundum,alumina,zirconia,agate,tungsten carbide.
Company Information
Changsha Mitrcn instrument equipment Co., Ltd specializes in designing, manufacturing and selling experimental equipment. Supported by the state key laboratory of Central South University Powder Metallurgy with Hunan University, Shanghai Jiao tong University and other well-known universities to maintain long-term close technical exchanges and product development cooperation.
The high-tech talents in our company are: doctor, master, eight senior engineer,eight senior technician, ten engineer,six technician.The main business is the R&D, production and sale of experimental equipment and related technical consultation services.
